9063

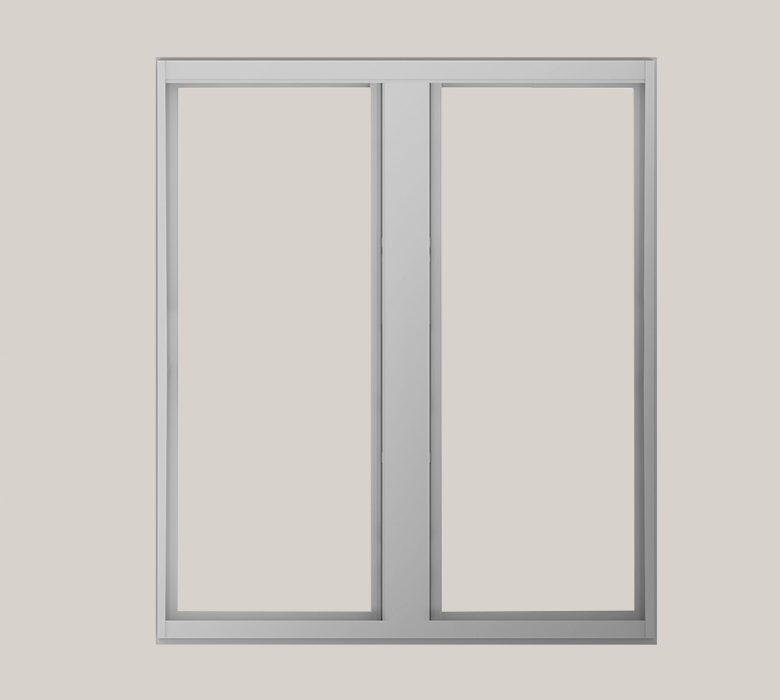

Fixed Window

Our 9063 series fixed window features a thermally broken frame for ideal climate control, resulting in lower energy bills costs and more stable temperature ranges. Available with impact and non-impact glass as well as custom sizes and options.

Brochure

Download PDF

Options & Accessories

Finish Options

Standard Single WinDoor Paint

10-Year Warranty
  • Hatteras White
  • Bermuda Bronze
  • Boca Tone
  • Costa Latte
  • Caribbean Crème
  • Custom Paint Available
5-Year Warranty
  • Clear Anodized
3-Year Warranty
  • Bronze
  • White
  • Custom Paint Available

Single Woodgrain

10-Year Warranty
  • European Birch
  • Scandinavian Cherry
  • Himalayan Walnut
  • Honduran Mahogany
  • Applied woodgrain

2-Tone – Option of Different Interior & Exterior Finishes

10-Year Warranty
  • 2-Tone Standard WinDoor Paint Options
  • 2-Tone WinDoor & Custom Paint
  • 2-Tone Both Custom Paint
  • 2-Tone Applied Woodgrain & Paint
5-Year Warranty
  • Clear Anodized with Interior Custom Paint or Applied Woodgrain

Beauty
And Beyond

Gorgeous views are what we do at WinDoor, but we go beyond beauty to deliver windows and doors of unmatched quality and precision. Every day we challenge convention to offer industry-pushing designs built to perform, protect, and transcend the ordinary.

Glass Options

Impact-Resistant & Non-Impact-Resistant Glass

  • Clear
  • Bronze
  • Gray
  • Green
  • Azure Blue
  • Solar Cool Bronze
  • White Interlayer
  • Obscure
  • Large Variance of Colors
  • Available with Low-E
  • Insulated (Includes airspace for energy efficiency)
  • Single Glazed

Grilles (Muntin) Options

  • Insulated Glass – Applied muntins on both exposed surfaces of the glass and muntins within the airspace
  • Single Glazed – Applied muntins on both exposed surfaces of the glass
  • Standard & Custom Patterns Available
  • Flat Bar Muntins - 1” and 2" Profiles Available
  • Contoured Muntins - 1” and 2-3/4" Profiles Available

Technical Information

  • Frame Depth – 3-1/4”
  • Size
    • Maximum 60” x 120”, 108” x 60”
    • Minimum 18” x 18” (Inside dimensions)
  • Glazing
    • Single Glazed & Insulated
    • Non-Impact and LM & SM Impact
  • Performance
    • Impact & Non-Impact
    • Single: +/- 135
    • Twin: +/- 150
  • Water
    • ASTM: 30 lbs
    • HVHZ: 22.5 lbs
  • Frame Options
    • Equal Leg
    • Fin Frame
    • Flange Frame

Certifications & NOAs
