9066

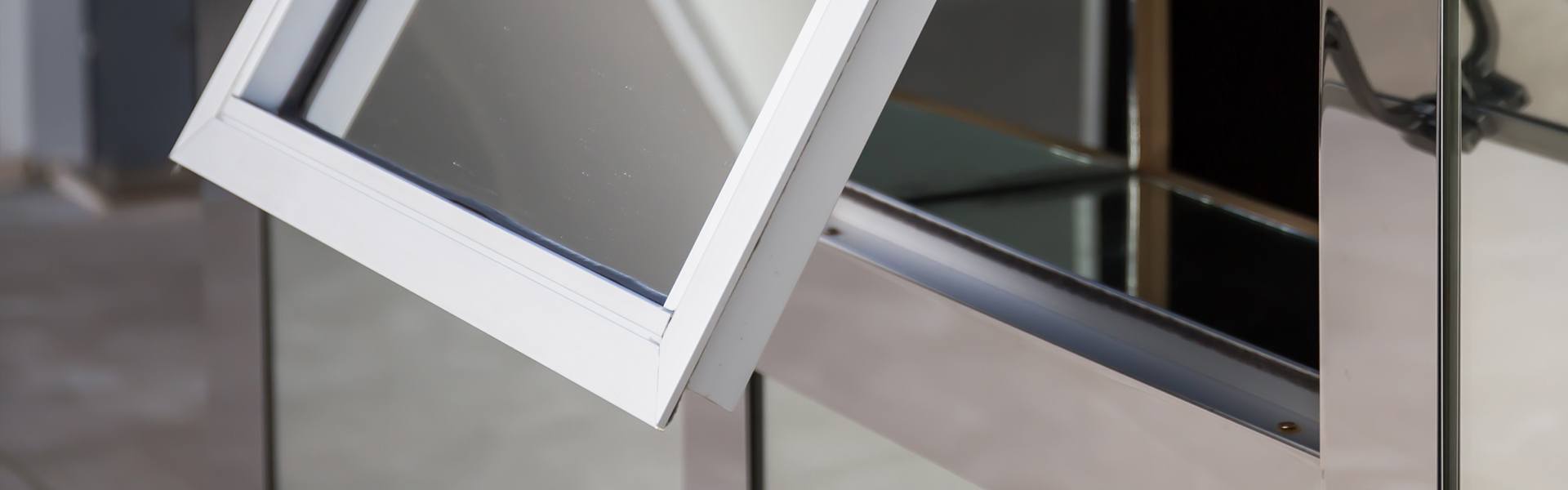

Thermally Broken Aluminum Awning Window

This thermally broken awning window is not like the rest. Our awning window outperforms most with high-impact and non-impact certifications. This window is similar to a casement style but has a smooth operating lever on the side of the frame that controls the window in open and closed positions from the bottom out. Great for basements or matching up with the WinDoor 9060 casement model.

Brochure

Download PDF

Options & Accessories

Finish Options

Standard Single WinDoor Paint

10-Year Warranty
  • Hatteras White
  • Bermuda Bronze
  • Boca Tone
  • Costa Latte
  • Caribbean Crème
  • Custom Paint Available
5-Year Warranty
  • Clear Anodized

Single Woodgrain

10-Year Warranty
  • European Birch
  • Scandinavian Cherry
  • Himalayan Walnut
  • Honduran Mahogany
  • Applied woodgrain

2-Tone – Option of Different Interior & Exterior Finishes

10-Year Warranty
  • 2-Tone Standard WinDoor Paint Options
  • 2-Tone WinDoor & Custom Paint
  • 2-Tone Both Custom Paint
  • 2-Tone Applied Woodgrain & Paint
5-Year Warranty
  • Clear Anodized with Interior Custom Paint or Applied Woodgrain

Beauty
And Beyond

Gorgeous views are what we do at WinDoor, but we go beyond beauty to deliver windows and doors of unmatched quality and precision. Every day we challenge convention to offer industry-pushing designs built to perform, protect, and transcend the ordinary.

Glass Options

Impact-Resistant & Non-Impact-Resistant Glass

  • Clear
  • Gray
  • Green
  • Azure Blue
  • Solar Cool Bronze
  • White Interlayer
  • Obscure
  • Available in Low-E
  • Insulated (Includes airspace for energy efficiency)
  • Single Glazed

Grilles (Muntin) Options

  • Insulated Glass – Applied muntins on both exposed surfaces of the glass and muntins within the airspace
  • Single Glazed – Applied muntins on both exposed surfaces of the glass
  • Standard & Custom Patterns Available
  • Flat Bar Muntins - 1” and 2" Profiles Available
  • Contoured Muntins - 1” and 2-3/4" Profiles Available

Technical Information

  • Frame Depth – 3 1/4”
  • Size
    • Maximum: Single Vent 54” x 36”, Twin Vent: 108” x 36”
    • Minimum Single Vent: 18” x 18”. Twin Vent: 36″ x 18″
  • Glazing
    • Single Glazed & Insulated
    • Non-Impact and LM Impact
  • Performance
    • Non-Impact: up to +135/-150 psf
    • Impact Single & Twin: up to +100/-150 psf
  • Water
    • ASTM: 20 lbs
    • HVHZ: 15 lbs
  • Frame Options
    • Equal Leg
    • Fin Frame
    • Flange Frame

Certifications & NOAs


Downloads
