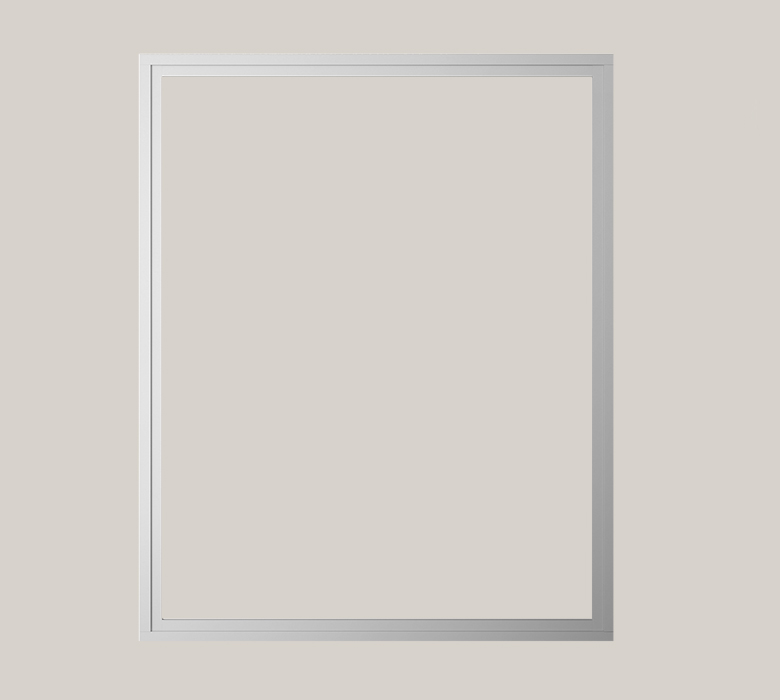

Thermally Broken Aluminum Picture Window

With the strength of aluminum and the energy ratings of vinyl comes the thermally broken 9020 fixed window. Available in multiple shapes and sizes, all while earning a high performance rating on high-impact and non-impact certifications. Match this superior window with some of our thermally broken products. Matching rails are available for continuous sight lines or choose mulled glass panes. If you are trying to achieve durability and longevity in a high-performance window, then look no further.

This series can also matched the top and bottom rails of our 8100 SGD, 9050 TD and 9060 Casement series products.

Options & Accessories

Finish Options

Standard Single WinDoor Paint

10-Year Warranty
  • Hatteras White
  • Bermuda Bronze
  • Boca Tone
  • Costa Latte
  • Caribbean Crème
  • Custom Paint Available
5-Year Warranty
  • Clear Anodized

Single Woodgrain

10-Year Warranty
  • European Birch
  • Scandinavian Cherry
  • Himalayan Walnut
  • Honduran Mahogany
  • Applied woodgrain

2-Tone – Option of Different Interior & Exterior Finishes

10-Year Warranty
  • 2-Tone Standard WinDoor Paint Options
  • 2-Tone WinDoor & Custom Paint
  • 2-Tone Both Custom Paint
  • 2-Tone Applied Woodgrain & Paint
5-Year Warranty
  • Clear Anodized with Interior Custom Paint or Applied Woodgrain

And Beyond

Gorgeous views are what we do at WinDoor, but we go beyond beauty to deliver windows and doors of unmatched quality and precision. Every day we challenge convention to offer industry-pushing designs built to perform, protect, and transcend the ordinary.

Glass Options

Impact-Resistant & Non-Impact-Resistant Glass

  • Clear
  • Gray
  • Green
  • Azure Blue
  • Solar Cool Bronze
  • Obscure
  • White Interlayer
  • Available in Low-E
  • Insulated (Includes airspace for energy efficiency)
  • Single Glazed

Grilles (Muntin) Options

  • Insulated Glass – Applied muntins on both exposed surfaces of the glass and muntins within the airspace
  • Single Glazed – Applied muntins on both exposed surfaces of the glass
  • Standard & Custom Patterns Available
  • Flat Bar Muntins - 1” and 2" Profiles Available
  • Contoured Muntins - 1” and 2-3/4" Profiles Available

Technical Information

  • Frame Depth – 3-1/4”
  • Size
    • Maximum 96” x 72”, 60” x 120”, 144” x 72”
    • Minimum 12” x 12”
  • Glazing
    • Single Glazed & Insulated
    • Non-Impact and LM & SM Impact
    • Optional blinds between glass
  • Performance
    • Non-Impact up to +150/-150 psf
    • Impact up to +110/-147 psf
  • Water
    • ASTM: 30 lbs
    • HVHZ: 16.5 lbs
  • Frame Options
    • Equal Leg
    • Fin Frame
    • Flange Frame

Certifications & NOAs
